How To Select Edge Polishing Wheel For Flat & Bevel Edge Work | JINSHAN

Buying guide for resin edge polishing wheel for stone flat edge and bevel-edge countertop finishing, covering bond, grit sequence and machine-fit requirements. H1: How to choose right edge polishing wheel for flat edge polishing and bevel edge polishing?



Countertop fabrication contains two frequent edge-polishing modes: flat edge and bevel edge. Many fabricators reuse one set of edge polishing wheels for both two profiles, causing in poor gloss, chipping edge corners or excessively fast tool wear. Selecting correct edge polishing wheel according to your target edge profile directly lifts finished-countertop quality and lowers tool consumption cost. JINSHAN LUX series resin edge polishing wheel is developed for diversified portable edge-polishing scenarios.



1. Core Difference Between Flat-Edge And Bevel-Edge Polishing Requirement

Flat sedge polishing mainly targets vertical 90-degree slab edge surface. The wheel keeps large-area flat contact against stone surface, requiring stable anti-chipping performance and even abrasive consumption. Bevel-edge (chamfer) polishing works on inclined angular surfaces; the contact area becomes narrow and changes dynamically during operation. Bevel-edge polishing wheels need good flexible adaptability to avoid corner burning and local over-consumption on chamfer transition zones.



2. Critical Factors When Choosing Edge Polishing Wheel

2.1 Abrasive Bond Hardness

For heavy-duty flat-edge mass production: choose medium-hard bond resin edge wheel, resisting fast consumption under large flat contact pressure. For bevel-edge frequent processing: moderately flexible bond helps adapt variable inclined-surface contact status, reduces stone chipping risk at chamfer corners.

2.2 Grit Sequence Arrangement

Flat-edge workflow: Coarse grit remove saw mark → medium grit eliminate coarse scratch → fine-grit series build mirror gloss. Bevel-edge workflow: Pay extra attention on medium-grit stages; chamfer corner is easy to retain invisible micro-scratch which will show up after fine polishing. You cannot skip medium grit steps for bevel-edge work.

2.3 Mechanical Interface Compatibility

Confirm mounting base matches your portable edge polisher. Snail-lock quick-change interface is widely adopted for modern countertop workshops for fast wheel replacement.



3. Simple Selection Reference Table

Polishing Task	Suggested Bond Feature	Key Attention
Flat Straight Edge	Medium-hard resin bond	Prevent edge chipping on vertical stone corner
Bevel / Chamfer Edge	Moderate-flexible resin bond	Avoid over-heat burning on chamfer transition zone

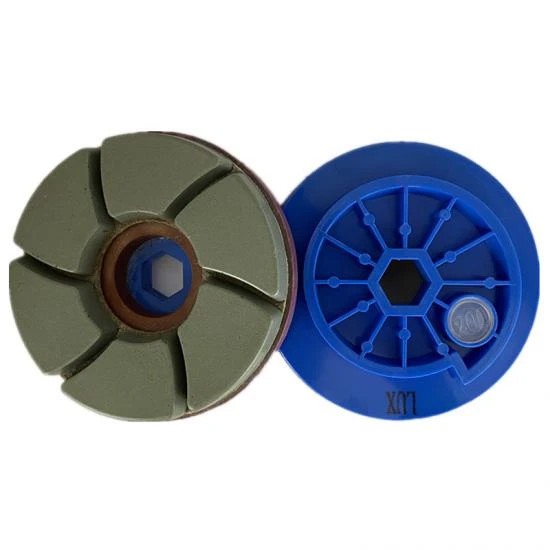

Resin Edge Polishing Wheel LUX



4. Practical Operational Advice

Do not keep long-time static pressing either on flat-edge or bevel-edge position; keep the polishing wheel moving continuously to disperse friction heat.

For mixed-production workshops producing both flat-edge and bevel-edge countertops, prepare two groups of matched edge-wheel formulas instead of forcing one-size-fits-all solution.

Maintain stable water-cooling flow rate. Insufficient water will trigger burning risk especially on thin chamfer bevel zones.



5. FAQ

Q: Can I use flat-edge-oriented polishing wheel purely for mass bevel-edge production?

A: It can work for occasional small-batch jobs. For continuous large-volume bevel-edge work, flat-edge wheel will suffer uneven partial wear and raise reject probability.

Q: What stone materials are JINSHAN resin edge polishing wheels suitable for?

A: It covers granite, engineered stone / quartz, marble for countertop edge finishing under wet-polishing condition.

Q: Is higher hardness always better for edge polishing wheel?

A: Not exactly. Over-hard bond brings fast-tool-wear-resistance but raises stone chipping risk on sharp corners. Bond hardness must match your edge-profile and stone material.



Proper edge-polishing-wheel selection minimizes countertop edge defects. If you are sourcing snail-lock resin edge polishing wheels for your countertop-fabrication shop, please contact enquiry@jinshanstone.com for bulk-price and customized-formula support.
